Slinex Outdoor panel ML-20TLHD, personal, 2MP, 115 degrees, touch-free, black

tovar kodi: ML-20TLHD_BLACK

Ta'rifi Foydali xususiyatlari (1)

Oldingi

Keyingi

Yuklab oling

Texnik xususiyatlari Slinex Outdoor panel ML-20TLHD, personal, 2MP, 115 degrees, touch-free, black:

Asosiy parametrlar

Parametrlarning to'liq ro'yxati

Type	Call Panel
Matrix type	CMOS /1/2,9"
Camera resolution	1920×1080 /режим AHD-H
	1280×720 /режим AHD-M
	960 ТВЛ /режим CVBS
Backlight type	IR lights
Temperature conditions	-40 – +50 °C
The size of the panel itself	45×130×24 mm

Key features

Type	Call Panel
Matrix type	CMOS /1/2,9"
Camera resolution	1920×1080 /режим AHD-H
	1280×720 /режим AHD-M
	960 ТВЛ /режим CVBS
Backlight type	IR lights
Minimum illumination	0.01 Lux (до 1,5 м)

Additional information

Security class	IP65
Key features	Button backlight
	Mechanical IR filter
	Separate power camcorder to connect to DVR
	Camera mode switching button (AHD-H, AHD-M, CVBS)

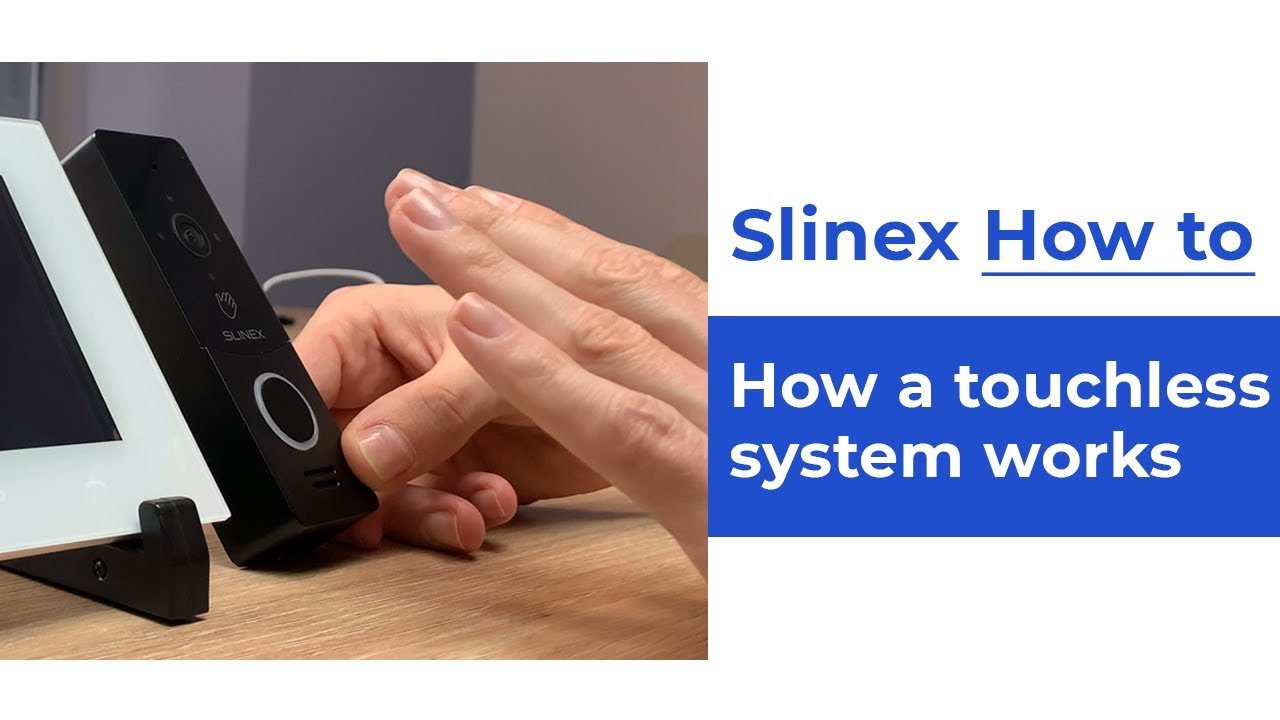

	Contactless call button
	Support for electromechanical locks /до 1 А
	Управление замком /нормально-відкриті контакти; нормально-закриті контакти
Power supply	12 V /в робочому режимі
	5V /в режимі очікування
Temperature conditions	-40 – +50 °C
Package contents	Call Panel /1 шт.
	User's manual /1 шт.
	Wall bracket /1 шт.
	Angle bracket /1 шт.
	Mounting screws and anchors /1 уп.
	Rain cover /1 шт.

Physical

Colour	Black
The size of the panel itself	45×130×24 mm

Kafolat

24 oy

Type: Call Panel; Matrix type: CMOS; Camera resolution: 1920×1080, 1280×720, 960 ТВЛ; Backlight type: IR lights; Min. illumination: 0.01 Lux; Protection class: IP65; Panel dimensions: 45×130×24.

989000 so'm*

mavjud

* Tavsiya etilgan chakana narxi

Tavsiflash Slinex Outdoor panel ML-20TLHD, personal, 2MP, 115 degrees, touch-free, black

FEATURES

Where it can be used

Slinex ML-20TLHD is an individual call panel (for 1 subscriber), which is suitable both for places and institutions with a large number of guests, and for private use:

businesses that most often work by appointment: dentists, beauty salons, notary offices, etc.;
night shops and pharmacies;
small offices;
in the common corridor or at the door to the apartment;
private houses, etc.

Appearance and camera

The new Slinex ML-20TLHD has a premium design of the ML-20HD call panel with only one difference – a new All-black coloring. The black metal case with a pleasant-looking acrylic overlay and blue LED backlight of the contactless call button will make you look at the familiar design in a new way!

As the camera supporting AHD and has a mechanical IR-cut filter, the user gets an image with an improved color rendition and deep image detail. Thanks to camera mode switch button (AHD-H, AHD-M, CVBS), ML-20TLHD can be connected to a large list of analog intercoms.

To'liq obzorni o'qish ›
